STIHL batteries: Charge and run time

Learn about the battery life per battery charge for different STIHL cordless power tools as well as the charging times for different STIHL batteries.

19.03.2024

Overview battery systems

Battery life per battery charge

STIHL AS/AI/AK

The battery life of a STIHL cordless power tool depends on the battery used, among other things. For example, a STIHL MSA 120 C-BQ cordless chainsaw with the recommended AK 20 battery lasts for up to 40 minutes, and can even achieve a battery life of up to 55 minutes when equipped with an AK 30 battery. You can find a complete list detailing the battery life for each of our STIHL cordless power tools in the tables below. All STIHL cordless power tools in the AS-System, AI-Line and AK-System are ideal for use in your own garden or in garden centres and nurseries.

STIHL AP-System

The particularly powerful STIHL cordless power tools in the AP-System impress with even more endurance and power. The battery life of these cordless power tools is particularly suitable for professional use in landscaping, garden care and tree maintenance or for municipal work. The corresponding tables show the battery life of your STIHL AP-System cordless power tool depending on the battery used.

Hedge trimmers/long-reach hedge trimmers

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge¹

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL HSA 26	110 min³	-	-	-	-
STIHL HSA 45	-	40 min³	-	-	-
STIHL HSA 50	-	-	55 min³	100 min	130 min
STIHL HSA 56	-	-	50 min³	100 min	120 min
STIHL HLA 56	-	-	50 min	100 min³	120 min

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended set}

STIHL AP-System

Battery life per battery charge¹

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL HSA 66	72 min³	144 min³	180 min	223 min	268 min	450 min	660 min	800 min	715 min	1,040 min
STIHL HSA 86	72 min	144 min³	180 min	223 min	268 min	450 min	660 min	800 min	715 min	1,040 min
STIHL HSA 94 R	54 - 42 min⁴	108 - 84 min⁴	135 - 105 min^{3 4}	167 - 130 min⁴	200 - 155 min⁴	380 - 320 min⁴	550 - 450 min⁴	700 - 570 min⁴	690 - 565 min⁴	985 - 800 min⁴
STIHL HSA 94 T	54 - 42 min⁴	108 - 84 min⁴	135 - 105 min^{3 4}	167 - 130 min⁴	200 - 155 min⁴	380 - 320 min⁴	550 - 450 min⁴	700 - 570 min⁴	690 - 565 min⁴	985 - 800 min⁴
STIHL HLA 66	72 min	144 min³	180 min	223 min	268 min	450 min	660 min	800 min	715 min	1,040 min
STIHL HLA 86	72 min	144 min³	180 min	223 min	268 min	450 min	660 min	800 min	715 min	1,040 min
STIHL HLA 135	32 min	64 min³	77 min	95 min	114 min	215 min	310 min	-	345 min	520 min
STIHL HLA 135 K	32 min	64 min³	77 min	95 min	114 min	215 min	310 min	-	345 min	520 min

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life

³Recommended set

⁴Level 1 to Level 3/4}

Garden pruners/pruning shears

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge¹

Product	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL GTA 26	25 min ³	-	-	-	-

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended set}

line trimmers/ brushcutters

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge¹

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL FSA 45 (with PolyCut 2-2 blades/line)	-	20/12 min³	-	-	-
STIHL FSA 57 (with nylon mowing head)	-	-	25 min³	50 min	60 min
STIHL FSA 60 R (with nylon mowing head)	-	-	13 min	30 min³	38 min

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³Recommended cutting attachment}

STIHL AP-System

Battery life per battery charge¹:

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL FSA 86 R (with nylon mowing head/with PolyCut)	17/30 min	35/60 min³	42/70 min	52/85 min	62/102 min	115/185 min	170/270 min	-	185/300 min	280/450 min
STIHL FSA 90 R (with nylon mowing head)	12 min	24 min	30 min³	37 min	44 min	80 min	120 min	150 min	130 min	195 min
STIHL FSA 90 (with grass cutting blade)	18 min	36 min	45 min³	56 min	67 min	120 min	180 min	220 min	195 min	290 min
STIHL FSA 120 R (with nylon mowing head)	15 min⁴	30 min⁴	40 min³⁴	50 min⁴	60 min⁴	110 min^{3 4}	160 min⁴	220 min⁴	200 min^{3 4}	300 min⁴
STIHL FSA 120 (with grass cutting blade)	15 min⁴	30 min⁴	40 min³⁴	50 min⁴	60 min⁴	110 min⁴	160 min^{3 4}	220 min⁴	200 min^{3 4}	300 min⁴
STIHL FSA 135 R (with nylon mowing head)	14 - 10 min⁴	28 - 17 min⁴	36 - 19 min⁴	45 - 25 min^{3 4}	54 - 30 min⁴	100 - 56 min^{3 4}	150 - 82 min⁴	190 - 125 min⁴	160 - 90 min⁴	220 - 130 min⁴
STIHL FSA 135 (with grass cutting blade)	25 - 16 min⁴	50 - 30 min⁴	70 - 40 min⁴	100 - 50 min^{3 4}	120 - 60 min⁴	200 - 100 min⁴	300 - 150 min^{3 4}	420 - 215 min⁴	310 - 160 min⁴	430 - 240 min⁴

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³Recommended cutting attachment
⁴ Level 1 to Level 3/4}

Chainsaws

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge¹

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL MSA 60	-	-	18 min⁴	40 min⁴	55 min³
STIHL MSA 70	-	-	18 min⁴	40 min⁴	45 min³
STIHL MSA 140 C-B	-	-	18 min⁴	40 min⁴	45 min³

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³Recommended cutting attachment
⁴ Reduced tool performance}

STIHL AP-System

Battery life per battery charge¹

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL MSA 160 C-B	-	42 min³	50 min	62 min	74 min	125 min	180 min	230 min	195 min	300 min

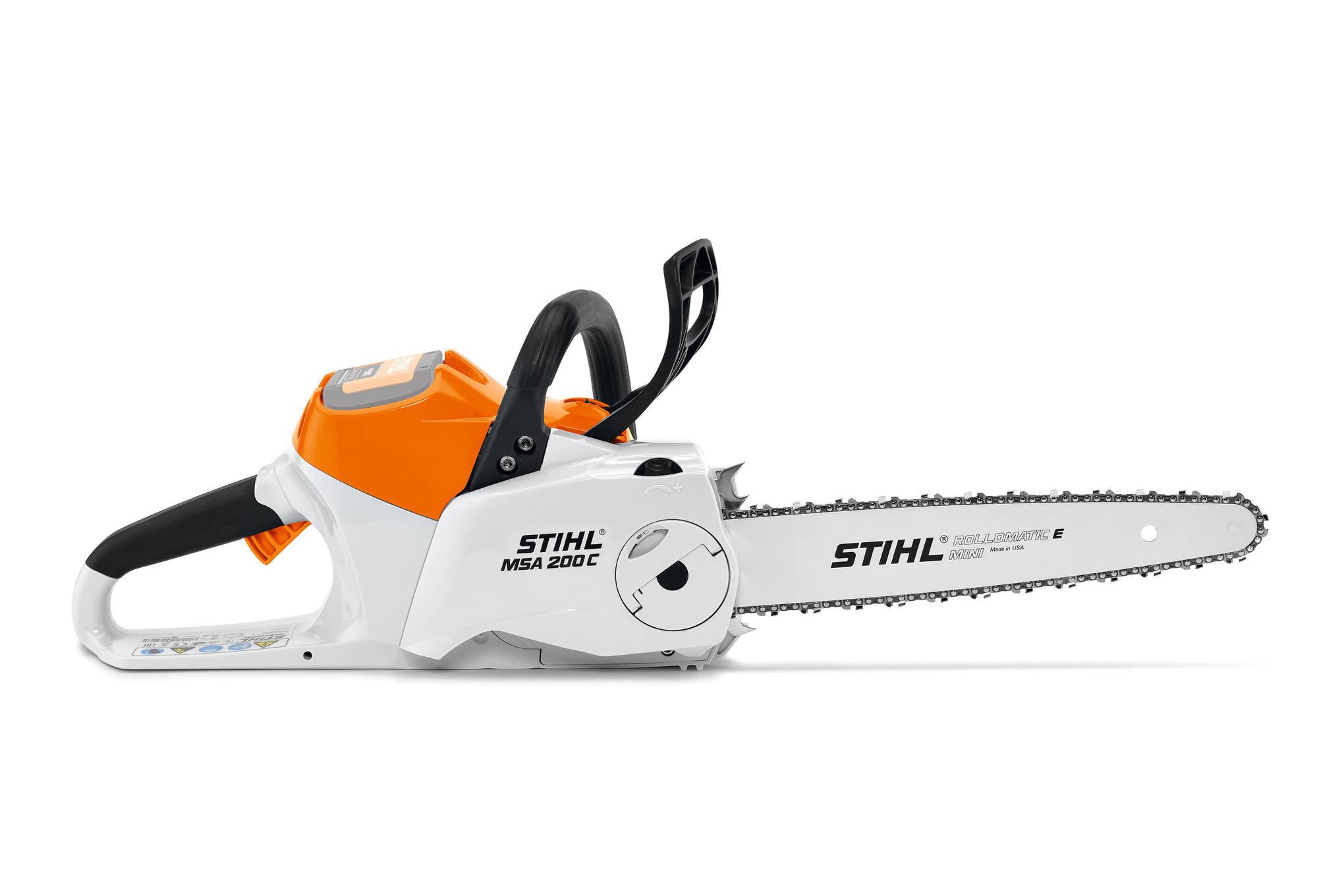

STIHL MSA 200 C-B	-	35 min⁴	40 min³	50 min	60 min	110 min	160 min	200 min	175 min	260 min
STIHL MSA 161 T	-	42 min³	50 min³	62 min	74 min	125 min	180 min	230 min	195 min	300 min
STIHL MSA 220 C-B	-	32 min⁴	35 min⁴	37 min³	44 min	110 min	160 min	200 min	201 min	281 min
STIHL MSA 220 T/MSA 220 TC-O	-	16 min⁴	25 min⁴	29 min³	34 min	-	-	-	-	-
STIHL MSA 300/300 C-O	-	-	-	-	20-44 min	-	-	-	-	-

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
²Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³Recommended cutting attachment
⁴Reduced tool performance}

leaf blowers/blowers/vacuum shredders

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge (up to ... min)¹:

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL BGA 45	-	10 min³	-	-	-
STIHL BGA 57	-	-	10 min	22 min³	27 min
STIHL BGA 60	-	-	9 min	13 min³	16 min
STIHL SHA 56	-	-	12 min	25 min³	30 min

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
²Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³ Recommended cutting attachment}

STIHL AP-System

Battery life per battery charge¹

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL BGA 86	11 min	17 min	21 min³	26 min	31 min	57 min	84 min	105 min	90 min	140 min
STIHL BGA 100	32 - 8 min⁴	66 - 12 min⁴	83 - 16 min⁴	103 - 20 min⁴	123 - 24 min⁴	225 - 45 min⁴	300 - 60 min⁴	395 - 75 min^{3 4}	320 - 65 ⁴	510 - 95 min^{3 4}
STIHL BGA 200	24 - 6 min⁴	49 - 7 min⁴	78 - 12 min⁴	95 - 14 min⁴	114 - 17 min⁴	212 - 32 min⁴	295 - 43 min⁴	376 - 60 min^{3 4}	315 - 53 min⁴	500 - 85 min^{3 4}
STIHL BGA 300	-	-	-	-	-	-	-	-	97 min⁴	140 min⁴

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³ Recommended cutting attachment
⁴ Level 1 - Level 3/Boost}

Lawn mowers

STIHL AS-System, AI-Line and AK-System

Maximum battery ranges¹

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL RMA 235	-	-	150 m²	300 m²	400 m²
STIHL RMA 339/RMA 339 C	-	-	120 m²	250 m²	330 m²
STIHL RMA 460	-	-	120 m²	200 m²	265 m²
STIHL RMA 460 V	-	-	120 m²	168 m²	218 m²

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.}

STIHL AP-System

Maximum battery ranges¹

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL RMA 253	125 m²	250 m²³	300 m²	370 m²	450 m²	-	-	-	-	-
STIHL RMA 443 STIHL RMA 443 C	180 m2⁴	360 m2³	440 m²	540 m²	650 m²	-	-	-	-	-
STIHL RMA 443 PV	210 m2⁴	420 m2³	510 m²	620 m²	740 m²	-	-	-	-	-
STIHL RMA 448 VC	160 m2⁴	330 m²	400 m2³	500 m²	600 m²	-	-	-	-	-
STIHL RMA 510	210 m2⁴	420 m²	510 m2³	630 m²	760 m²	-	-	-	-	-
STIHL RMA 510 V	-	196 m2	238 m2	286 m2	400 m2
STIHL RMA 765 V	-	-	350 m²	400 m²	480 m²	-	-	-	2050 m²	3100 m2³

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³Recommended cutting attachment
⁴Reduced tool performance}

LAWN AERATORS/SCARIFIERS

STIHL AK-System

Maximum battery ranges¹

	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL RLA 240	96 m2⁴	190 m²	250 m2³

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³Recommended cutting attachment
⁴Reduced tool performance}

Pole pruner

STIHL AK-System

Battery life per battery charge¹:

	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL HTA 50	25 min⁴	45 min²	60 min³

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended set

⁴ Reduced tool performance}

STIHL AP-System

Battery life per battery charge¹:

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL HTA 66	18 min⁴	42 min³	55 min	68 min	82 min	125 min	175 min	210 min	195 min	300 min
STIHL HTA 86	18 min⁴	42 min³	55 min	68 min	82 min	125 min	180 min	210 min	195 min	300 min
STIHL HTA 135	10 min⁴	22 min⁴	35 min	45 min³	54 min	95 min	130 min	-	160 min	240 min

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended set

⁴ Reduced tool performance}

CombiSystem and MultiSystem

STIHL AP-System

Battery life per battery charge¹

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL KMA 130 R (FS-KM mowing head)	14 - 7 min⁴	28 - 14 min⁴	36 - 17 min⁴	45 - 22 min	54 - 26 min⁴	100 - 50 min^{3 4}	150 - 70 min⁴	193 - 92 min⁴	160 - 80 min^{3 4}	200 - 115 min⁴
STIHL KMA 135 R (FS-KM mowing head)	14 - 7 min⁴	28 - 14 min⁴	36 - 17 min⁴	45 - 22 min³	54 - 26 min⁴	100 - 50 min^{3 4}	150 - 70 min⁴	193 - 92 min⁴	160 - 80 min⁴	200 - 115 min⁴
STIHL KMA 130 R (FS-KM grass-cutting blade)	25 - 16 min⁴	50 - 30 min⁴	70 - 40 min⁴	100 - 50 min⁴	120 - 60 min⁴	200 - 100 min^{3 4}	300 - 150 min⁴	368 - 191 min⁴	310 - 160 min^{3 4}	430 - 240 min⁴
STIHL KMA 135 R (FS-KM grass-cutting blade)	25 - 16 min⁴	50 - 30 min⁴	70 - 40 min⁴	100 - 50 min^{3 4}	120 - 60 min⁴	200 - 100 min^{3 4}	300 - 150 min⁴	368 - 191 min⁴	310 - 160 min⁴	430 - 240 min⁴
STIHL KMA 130 R (HL-KM 0° long-reach hedge trimmer)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	1150 - 790 min⁴
STIHL KMA 135 R (HL-KM 0° long-reach hedge trimmer)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	1150 - 790 min⁴
STIHL KMA 130 R (HL-KM 145° long-reach hedge trimmer)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	1150 - 790 min⁴
STIHL KMA 135 R (HL-KM 145° long-reach hedge trimmer)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	1150 - 790 min⁴
STIHL KMA 130 R (FH-KM 145° scrub cutter)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	1150 - 790 min⁴
STIHL KMA 135 R (FH-KM 145° scrub cutter)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	1150 - 790 min⁴
STIHL KMA 130 R (BG-KM blower)	14 - 6 min⁴	26 - 10 min⁴	39 - 15 min⁴	48 - 19 min⁴	58 - 23 min⁴	104 - 39 min^{3 4}	153 - 57 min⁴	191 - 72 min⁴	170 - 60 min^{3 4}	245 - 90 min⁴
STIHL KMA 135 R (BG-KM blower)	14 - 6 min⁴	26 - 10 min⁴	39 - 15 min⁴	48 - 19 min⁴	58 - 23 min⁴	104 - 39 min^{3 4}	153 - 57 min⁴	191 - 72 min⁴	170 - 60 min^{3 4}	245 - 90 min⁴
STIHL KMA 130 R (HT-KM pole pruner)	22 - 10 min⁴	42 - 19 min⁴	63 - 29 min⁴	78 - 36 min⁴	94 - 43 min⁴	171 - 77 min^{3 4}	250 - 112 min⁴	313 - 141 min⁴	275 - 120 min^{3 4}	320 - 180 min⁴
STIHL KMA 135 R (HT-KM pole pruner)	22 - 10 min⁴	42 - 19 min⁴	63 - 29 min⁴	78 - 36 min⁴	97 - 43 min⁴	171 - 77 min^{3 4}	250 - 112 min⁴	313 - 141 min⁴	275 - 120 min^{3 4}	320 - 180 min⁴
STIHL KMA 130 R (KW-KM power sweep)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	300 - 230 min⁴
STIHL KMA 135 R (KW-KM power sweep)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	300 - 230 min⁴
STIHL KMA 130 R (KB-KM bristle brush)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	300 - 230 min⁴
STIHL KMA 135 R (KB-KM bristle brush)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴	125 - 99 min^{3 4}	183 - 145 min²	230 - 181 min⁴	200 - 160 min^{3 4}	300 - 230 min⁴
STIHL KMA 130 R (BF-KM pick tine)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	300 - 230 min⁴
STIHL KMA 135 R (BF-KM pick tine)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	300 - 230 min⁴
STIHL KMA 130 R (FCB-KM edge trimmer)	12 - 7 min⁴	23 - 12 min⁴	33 - 18 min⁴	41 - 22 min⁴	49 - 26 min⁴	89 - 47 min^{3 4}	131 - 69 min⁴	164 - 86 min⁴	145 - 75 min^{3 4}	210 - 110 min⁴
STIHL KMA 135 R (FCB-KM edge trimmer)	12 - 7 min⁴	23 - 12 min⁴	33 - 18 min⁴	41 - 22 min⁴	49 - 26 min⁴	89 - 47 min^{3 4}	131 - 69 min⁴	164 - 86 min⁴	145 - 75 min^{3 4}	210 - 110 min⁴
STIHL KMA 130 R (FCS-KM edge trimmer)	12 - 7 min⁴	23 - 12 min⁴	33 - 18 min⁴	41 - 22 min⁴	49 - 26 min⁴	89 - 47 min^{3 4}	131 - 69 min⁴	164 - 86 min⁴	145 - 75 min^{3 4}	210 - 110 min⁴
STIHL KMA 135 R (FCS-KM edge trimmer)	12 - 7 min⁴	23 - 12 min⁴	33 - 18 min⁴	41 - 22 min⁴	49 - 26 min⁴	89 - 47 min^{3 4}	131 - 69 min⁴	164 - 86 min⁴	145 - 75 min^{3 4}	210 - 110 min⁴
STIHL KMA 130 R (FBD-KM bed edge trimmer)	5 - 5 min⁴	9 - 9 min⁴	14 - 14 min⁴	-	-	38 - 38 min^{3 4}	55 - 55 min⁴	69 - 69 min⁴	60 - 60 min^{3 4}	90 - 90 min⁴
STIHL KMA 135 R (FBD-KM bed edge trimmer)	5 - 5 min⁴	9 - 9 min⁴	14 - 14 min⁴	-	-	38 - 38 min^{3 4}	55 - 55 min⁴	69 - 69 min⁴	60 - 60 min^{3 4}	90 - 90 min⁴
STIHL KMA 130 R (SP-KM harvester)	26 - 17 min⁴	51 - 33 min⁴	78 - 50 min⁴	97 - 62 min⁴	116 - 74 min⁴	209 - 134 min^{3 4}	305 - 196 min⁴	383 - 246 min⁴	330 - 215 min^{3 4}	490 - 320 min⁴
STIHL KMA 135 R (SP-KM harvester)	26 - 17 min⁴	51 - 33 min⁴	78 - 50 min⁴	97 - 62 min⁴	116 - 74 min⁴	209 - 134 min^{3 4}	305 - 196 min⁴	383 - 246 min⁴	330 - 215 min^{3 4}	490 - 320 min⁴
STIHL KMA 130 R (RG-KM rotary cutting head set to level 3)	28 min	57 min	70 min	85 min	102 min	190min³	280 min	350 min	300 min³	450 min
STIHL KMA 135 R (RG-KM rotary cutting head set to level 3)	28 min	57 min	70 min	85 min	102 min	190 min³	280 min	350 min	300 min³	450 min

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.

³Recommended set

⁴Level 1 to Level 3/4}

Sweeping machines

STIHL AP-System

Maximum battery life per battery charge¹

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL KGA 770	84 min³	168 min³	210 min	260 min	312 min	-	-	-	-	-

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended set}

Cut-off machines

STIHL AP-System

Maximum battery life per battery charge¹

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1148 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL TSA 230	7 min	14 min	18 min³	22 min	26 min	50 min	75 min	95 min	80 min	125 min

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
³ Recommended cutting attachment}

Wet and dry vacuum cleaners

STIHL AS-System

Maximum battery life per battery charge¹

Product	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 (180 Wh battery power²)
STIHL SEA 20	14 min³	-	-	-	-

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
³ Recommended cutting attachment}

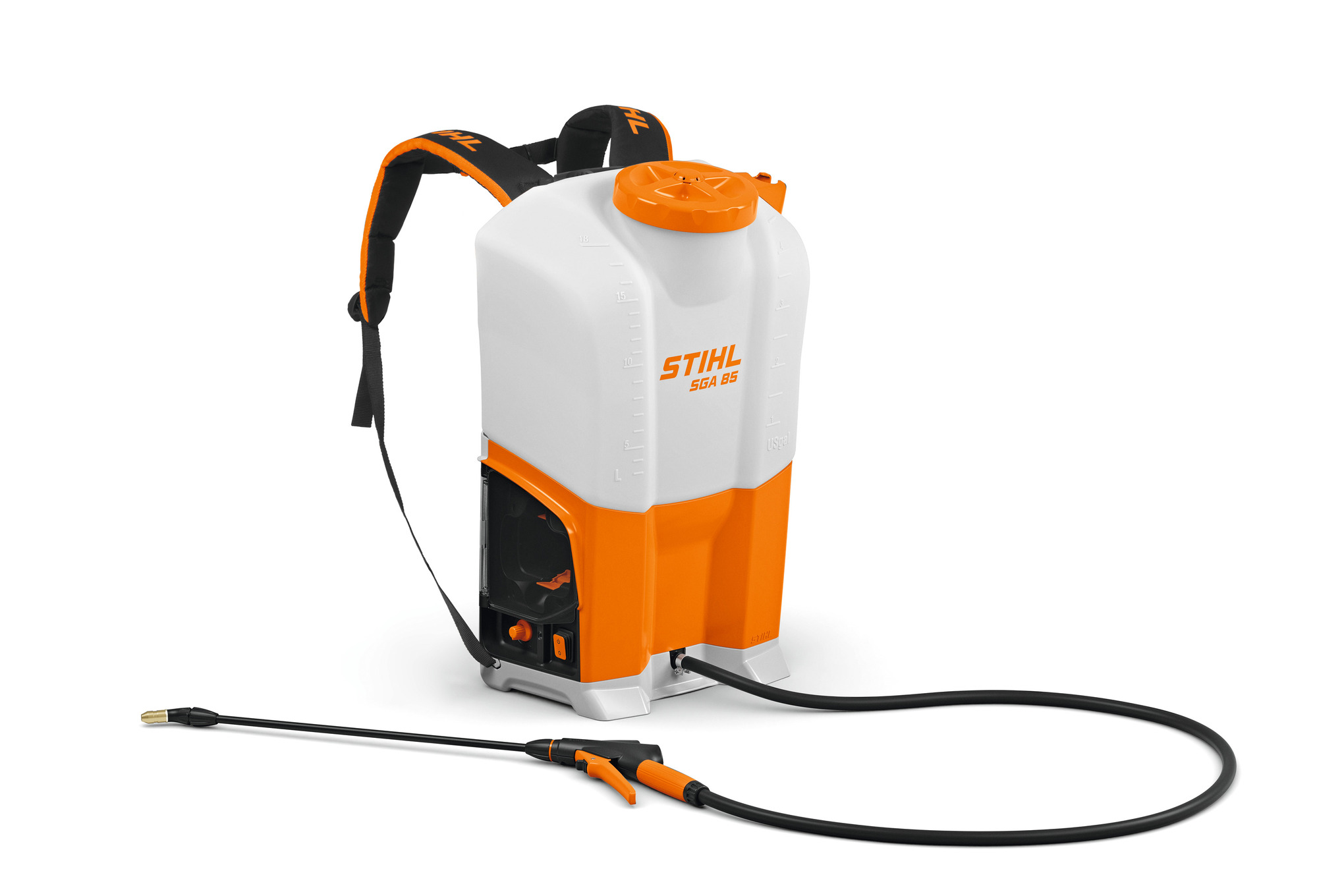

Sprayers

STIHL AP-System

Maximum battery life per battery charge¹

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 2000 L (1,015 Wh battery power²)	AR 3000 L (1,520 Wh battery power²)
STIHL SGA 85	510 min⁴	1000 min³	-	-	-	-	-

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
³ Recommended cutting attachment
⁴ Reduced tool performance}

Battery charging times

Battery charging times in minutes

The charging times of batteries are not determined solely by their capacity – the charger also has an impact on battery charging time. For example, the charging time for the STIHL AK 10 battery with the AL 101 charger is 95 minutes, while with the AL 300 charger the battery is fully charged in just 45 minutes. The table below shows which charger suits which STIHL battery and indicates the charging time required to reach a battery level of 80% and 100%.

	AL 1		LK 45		AL 100		AL 101		AL 300		AL 500
	80%	100%	80%	100%	80%	100%	80%	100%	80%	100%	80%	100%
AS 2	55 min	70 min	-	-	-	-	-	-	-	-	-	-
BGA 45	-	-	210 min	300 min	-	-	-	-	-	-	-	-
HSA 45	-	-	145 min	210 min	-	-	-	-	-	-	-	-
FSA 45	-	-	145 min	210 min	-	-	-	-	-	-	-	-
AK 10	-	-	-	-	-	-	70 min	95 min	30 min	45 min	30 min	45 min
AK 20	-	-	-	-	-	-	135 min	180 min	35 min	55 min	35 min	55 min
AK 30	-	-	-	-	-	-	160 min	205 min	35 min	60 min	35 min	60 min
AP 100	-	-	-	-	-	-	75 min	100 min	30 min	45 min	30 min	45 min
AP 200	-	-	-	-	-	-	150 min	200 min	40 min	55 min	30 min	45 min
AP 300	-	-	-	-	-	-	190 min	250 min	45 min	60 min	25 min	35 min
AP 300 S	-	-	-	-	-	-	230 min	300 min	55 min	70 min	30 min	45 min
AR 1000	-	-	-	-	-	-	-	-	130 min	160 min	90 min	120 min
AR 2000	-	-	-	-	-	-	-	-	190 min	215 min	100 min	130 min
AR 3000	-	-	-	-	-	-	-	-	220 min	265 min	120 min	160 min
AR 2000 L	-	-	-	-	-	-	-	-	210 min	270 min	110 min	150 min
AR 3000 L	-	-	-	-	-	-	-	-	310 min	400 min	170 min	220 min
